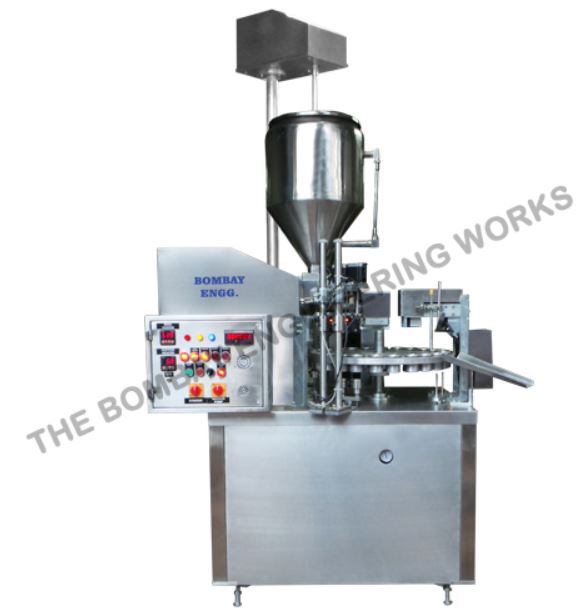

Lami Tube Filling Machine

Our range of Lami Tube Filling Machines have a syringe pump housing and rotary piston filling device that has a blow off device pneumatic tail cut-off system. These machines have a high filling speed of 40 to 50 tubes per minutes and jacketed hopper single head type of capacity of 40 liters. These tube filling machines are provided with stainless steel spring loaded change part 12 nos. nylon holders one tube size.

These machines are also equipped with temperature controller with 3 KW SS tubular heater. Our range of machines have a label sensor and controller and various optional accessories like vacuum cleaning, jacketed hopper with stirrer, product level sensor in filling hopper with pump controller, automatic cassette loader to load the tubes and orientation sensors with stepper motor.

Salient Features :

  • Auto Feeding & Orientation of tubes with “I” mark Sensor.
  • Contact parts made of S.S 304/S.S 316L.
  • Quality material the conforms to CGMP Norms.
  • No Tube no feeling Device.
  • Quickly change over from Lami to aluminium tubes within 10 to 15 minutes.
  • Rotary type & compact design.
  • Production counter available on control panel to indicate number of tube filled.
  • Filling Accuracy + 1%.

Optional Accessories :

  • Sealing & Crimping Types: Hot air/ hot jaw / ultrasonic, double triple & saddle type fold for metal tubes.
  • Jacketed hopper & stirrer.
  • Batch Coding Arrangement [Male or Female] Type is also provided.
  • Transfers Pumps.
  • Tube cleaning Attachment.

Technical Specification :

Plastic & Lami Aluminum Combo
Output 40 to 45 Tube/per min 40 to 45 Tube/per min 40 to 45 Tube/per min
Filling Range 3 gm to 150 gm 3 gm to 150 gm 3 gm to 150 gm
Tube Diameter 10 mm to 50 mm 10 mm to 50 mm 10 mm to 50 mm
Operator one one one
Power Consumption 5kw 1kw 5kw
Air Pressure 6 to 7 kg 6 to 7 kg 6 to 7 kg
Net weight 450 400 500
Gross Weight 555 500 600
Dimension 38″L x 36″W x 72″H 38″L x 36″W x 72″H 38″L x 36″W x 72″H
