Manufacturing and features of two head liquid filling

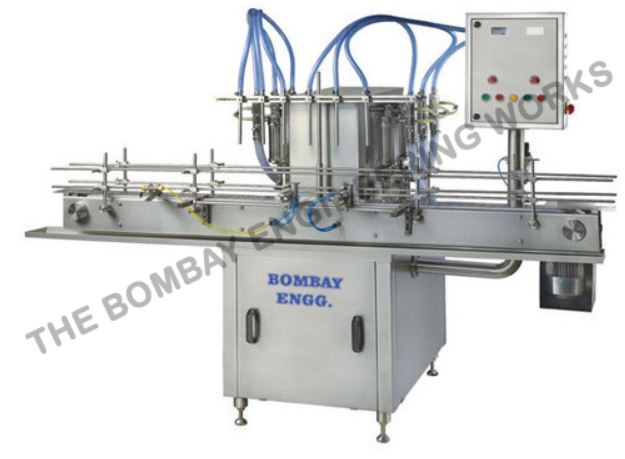

Two Head Liquid Filling Machine

Two Head Liquid Filling Machine

We manufacture these machines from high grade quality material using latest technology. We offer our clients with Automatic Two Head Liquid Filling Machine for Vials at highly competitive prices. These are precision engineered to fulfil various requirements of our clients. We provide customized solutions to our clients for its hassle free functioning. Machine is suitable for Round vials.

Automatic Two Head Volumetric Liquid Bottle Filling Machine Mode is suitable for Bottles with a maximum speed of 60 Bottles per minute. The output of Bottle Filling Machines depends on Liquid, Bottle Diameter, Bottle Height, Bottle Neck Size, and Fill Volume. Machine construction in fully Stainless-Steel finish, including machine frame structure. Machine with Optional Turn Tables at In-feed and Out-feed with individual drives to match incoming and outgoing Bottles’ speed for smoother operation. All parts coming in contact with Liquids are made from SS316 Materials.

the features of two head liquid filling machine.

  • Rigid vibration free construction for trouble free performance.
  • S.S. Top, covers, conveyor guides and other parts for longer life .
  • Elegant and Easy reach control panel for total control on operation.
  • ‘No container machine stops’ saves valuable liquid and down time for cleaning.
  • Steel frame is elegantly and systematically painted for corrosion resistance.
  • Self centering device to take care of non concentricity of container to certain extant.
  • High precision manufactured syringes to achieve high accuracy in fill size and drip proof performance.
  • Minimum change overtime, from one size of container or fill size to another.
  • Long Liquid collection tray with outlet below conveyor to Safeguards assemblies.
  • Special designed nozzle and syringe in order to prevent liquid spillage in from on drop.
  • No Bottle – No Fill System, No Bottle – Machine Stop System
  • All contact parts are made of Ss316 material with an easy removal system for Auto-Claving/Sterilization/Cleaning.
  • Machine construction in SS 304 material
  • Diving Nozzle for Foam free filling
  • Very High Fill Accuracy
  • Automatic Infeed and Exit of Bottles
  • Minimum Change Overtime
  • Unique Free Spinning Bottle Separator- No pneumatic operation
  • Built-in A.C. Variable Freq. Drive System

MODEL NO.

50A

OUT PUT/HOUR
[Depending on Nature of Liquid & Fill size]
40 bottles per minute
FILL SIZE & ACCURACY 30ML T0 500ML
(+1% ON SINGLE DOZE)
POWER CHARACTERISTICS 440V, 3PH 50HZ(4 WIRE SYSTEM)
ELECTRICAL RATINGS H.P.1, 1500 RPM FOR MAIN M/C
0.50 H.P. 1500RPM FOR CONVEYOR
0.50 H.P. 1500 RPM FOR TURN TABLE
DIMENSIONS 1800 x 840 x 1400 (mm)
HEIGHT OF CONVEYOR ADJUSTABLE FROM 750 MM TO 840 MM
NET WEIGHT 650KG
CONTAINER DIAMETER 30 MM TO 100 MM
HEIGHT 210 M MAXIMUM
