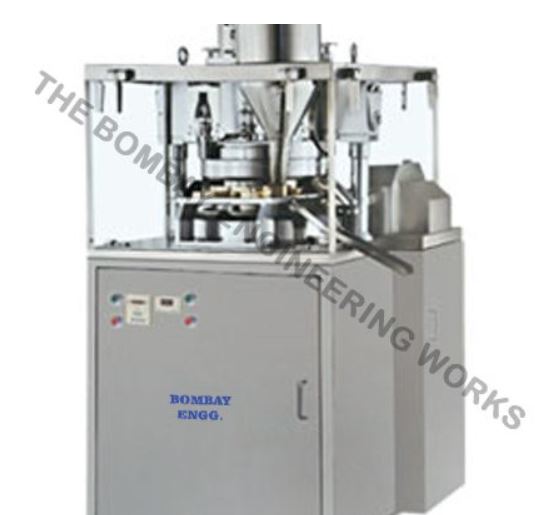

DOUBLE SIDED ROTARY TABLETING MACHINE (cGMP)

It is a square model/ DOUBLE-SIDED ROTARY TABLETING MACHINE (cGMP) promising unmatched quality for medium batch production. Safety/enhanced performance/cleavability and ease of operation are its most significant features. Can select the suitable model based on the tooling and output requirement from the 27, 35 & 45 stations with “D,” “B,” & “BB” tooling, respectively.

FEATURES :

Robust with high-quality Engineering.
The turret of SG IRON 500/7 Graded Casting.
Medium batch production.
Maximum output up to 216000 tablets per hour (for 45 Station).
Tablets of up to 23 mm Diameter for ‘D’ Tooling and 16 mm Diameter for ‘B’ Tooling.
Safe / Simple to operate and easy to maintain.
Designed as per cGMP standards.

SPECIAL FEATURES FOR cGMP MODEL :

Disc Type Friction Clutch
Digital Tablet Counter
Gravity feeder (Feed frame)
Double-Sided Lifting Cams
Interlocking at Upper Guard
Variable speed pulley.
Upper punch penetration system
Digital Ampere meter

Machine Type	BE-Tablet press machine-27 D	BE-Tablet press machine- 27 B	BE-Tablet press machine-35 B	BE-Tablet press machine-45 BB
Number of Stations	27	27	35	45
Type of Tooling	D	B	B	BB
Output- Tablets/Hr	54000- 129000	54000- 129000	70000- 168000	90000-216000
Turret RPM (Max)	40 RPM	40 RPM	40 RPM	40 RPM
Max. Operating Pressure	100 KN	60 KN	60 KN	60 KN
Max. Tablet Diameter	25 mm.	16 mm.	16 mm.	11.1 mm.
Max. Depth of Fill	20.5 mm.	17.5 mm.	17.5 mm.	17.5 mm
Upper Punch Penetration	1.5 to 8 mm.	1.5 to 8 mm.	1.5 to 8 mm.	1.5 to 8 mm
Diameter of Die(mm.)	38.10	30.15	30.15	24.10
Diameter of Punch(mm.)	25.34	18.99	18.99	18.99
Length of Punch(mm.)	133.6	133.6	133.6	133.6
Power	5.0 H.P. x 1440 RPM x 3 Phase x 415 Volts
Overall Dimensions(mm.)	1040 x 1000 x 1790
Net Weight (Kgs.)	1400
