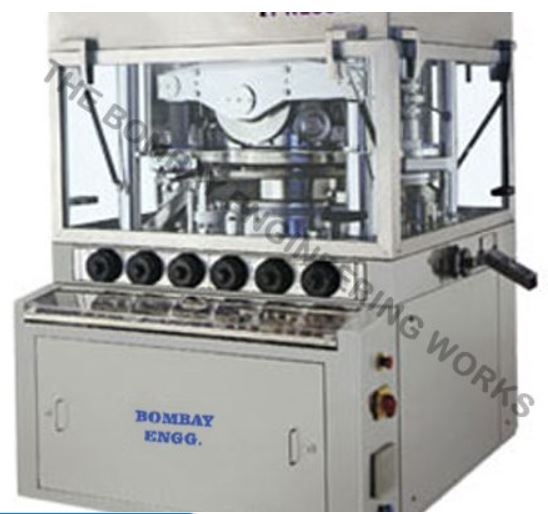

i Press IV - High Speed Rotary Tablet Press (cGMP)

i Press IV - High Speed Rotary Tablet Press (cGMP)

The i press-ii high speed rotary tablet press machine (GMP model) is ideally suited for projects that require a higher output to cater to large scale batch production needs. Built-in compliance with the cGMP standards, it is optimally designed for all kinds of pharmaceutical companies. It comes with a force feeder attachment, which helps to ensure higher weight consistency for the tablets. The interlocked guards guarantee safety at all times. The rotary force feeders are bottom driven and can be easily removed at any point in time. An electromagnetic clutch is fitted with this device that makes it easier to carry out the operations. The i press-ii high speed rotary tablet press machine has an internal helical gear ring and a pinion drive, which can facilitate the machine’s smooth and efficient running. The operational team can set all the tablet parameters from outside the tableting zone.

  • In Compliance with cGMP Guidelines
  • The turret of SG IRON 500/7 Graded Casting
  • High-Speed Double Sided Rotary Tablet Press with Pre-Compression Facility
  • Maximum Output up to 540000 tablets per hour (for 75 Station)
  • Easy Accessibility for Quick Cleaning and Product Conversion
  • Improved Tablet Quality; Handles Difficult Products Easily due to Pre-Compression Facility
  • Precise Weight Control
  • Ensures Hygienic Production Conditions and Operator Safety
  • All Tablet Parameters can be fine-tuned during operations from outside the tableting zone
  • Force Feeding System
  • Hydraulic Power-Pack System
  • Auto Lubrication system
  • Upper punch penetration system
  • Safety interlocking for upper guards
  • Front and Easy Outside Controls for machine and tablet parameters
  • Three Piece Turret with Stainless Steel 316 L die-plate
  • Tablet Rejection on Machine Startup and Stop and random sampling device
  • Powder Level Sensors at Feed Hopper
  • Tight Punch Detection (Upper Punch)
  • PLC-MMI Control system with Touch Screen display
  • Gravity Feeding System
  • Bi-layer tablet facility
  • Tablet Sampling
TECHNICAL SPECIFICATION

MODEL

ACRA PRESS-IV-45

ACRA PRESS-IV-55

ACRA PRESS-IV-61

ACRA PRESS-IV-75

No. of Station

45 Station

55 Station

61 Station

75 Station

Type of Tooling

D

B

B

BB

Output-Tablet/Hr (Min./Max) *

65,000 to 3,25,000

79,000 to 3,96,000

87,840 to 4,39,200

1,08,000 to 5,40,000

Operating Pressure (Main)

10 Tons (Max.)

6.5 Tons

Operating Pressure (Pre-Compression)

1 Ton

Depth of Fill

20 mm

17.4 mm

MAX RPM

60 RPM

Max. Tablet Dia.

25 mm

16 mm

16 mm

11.1 mm

Upper Punch Penetration

1.5 to 8 mm

Total Power

8.75 kw/11.7 HP

Main Electric Motor

7.5 kw /10 HP/1440 RPM 415 V / 50 Hz. / 3 Ph.

Feeder Motors (2 Nos.)

0.19 kw/0.25 HP / 1440 RPM / 415 V

Overall Dimension (mm)

2500 (L) x 2500 (W) x 2275 (H) (Open Guard)

Overall Dimension (mm)

1500 (L) x 1580 (W) x 1900 (H) (Close Closed)

Case Dimension (mm)

3100 (L) x 3200 (W) x 2450 (H)

Net Weight (Approx.)

3800 kgs.

Gross Weight (Approx.)

4150 kgs.
