know about intank homogeniser

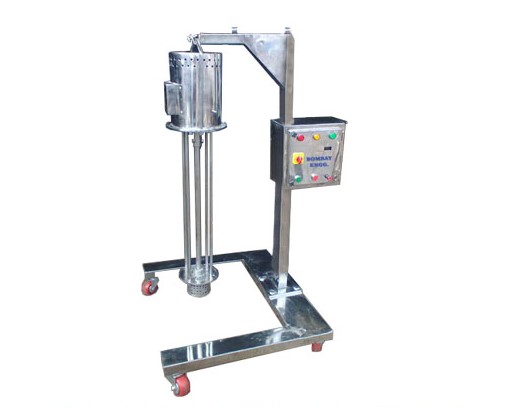

INTANK HOMOGENISER is fitted on the vessel on a top dish or SS stand in case of open-top vessels. It is also available as a portable unit mounted on a stand or even as a wall hook type hanging unit as per clients requirements. It consists of a Rotor & Stator system mounted on a shaft driven by a Motor of suitable Hp at 1440 rpm. (Higher rpm available if required). We also provide four tie rods for support.

The homogenizer is often necessary to mix one or more substances within a liquid. This device allows micronizing and scattering the particles suspended in the fluid to become highly stable, no matter the followings treatments and stockings the products may undergo. The homogenizer delivers unparalleled consistency and control of high shear process applications such as Immiscible Phase Emulsifying, Homogenizing, Wet Grinding, Texturing, Deagglomeration, and Fine Dispersing.
The product arrives at the homogenizing at a low speed and high pressure (caused by the little gape between the passing head and collision head). During the passage, the product is subjected to numerous forces that drive the particles micronization: a violent acceleration followed by an immediate deceleration that produces cavitation and then the globules explosion. Strong turbulence is united to high-frequency vibrations. Collision cutting strengths derived from the laminar passage between the homogenizing valve surfaces and the following impact with the collision ring.

  • SS 316 contact parts & SS 304 non-contact parts.
  • Portable Units / Wall Hanging Units / Vessel Mounting units available.
  • Used for homogenisation, dispersion, emulsification of liquids, semi solids, Ointments, creams etc.
  • Single stage to four stage homogenisers available.
  • Specially designed Rotor & stator.
  • 1440 rpm for better homogenisation, dispersion and emulsification.
  • Online Powder Addition facility available as option.
  • Flame Proof motor and electricals option available.
  • Capacities available to suit vessels from 50 ltrs to 20000 ltrs capacity.
